Victron MultiPlus-II 2x120V Explained 240V Shore Power vs 120V Battery Mode #victron #offgrid

May 29, 2026 • Watch on YouTube →

🔗 Links Mentioned

Affiliate link — we may earn a commission if you purchase through this link, at no extra cost to you.

📝 Description

Affiliate link — we may earn a commission if you purchase through this link, at no extra cost to you.

The Victron Energy MultiPlus-II 12/3000/120-50 2x120V inverter charger has a feature that many RV, van life, truck, and mobile power users don't fully understand. Inverter: https://signaturesolar.com/victron-multiplus-ii-12-3000-12v-input-3000w-output-120-240v-120a-charger-transfer-switch?ref=bkpkbxde Cables: https://www.batterycablesusa.com/anderson-sb-battery-cables VIctron Smart Dongle: https://amzn.to/3RETr9C 10 AWG Ferrule for victron: https://amzn.to/4wSnjj3 When connected to a 50A 120/240V split-phase shore power connection, the MultiPlus-II can pass both hot legs through to AC Output 1 and AC Output 2. However, when shore power is disconnected and the inverter switches to battery power, the system outputs only 120V from AC Output 1. This makes the Victron MultiPlus-II 2x120V an excellent solution for RVs, campers, trucks, boats, emergency backup systems, and mobile power installations that need split-phase pass-through while maintaining reliable battery backup power. Products discussed: Victron Energy MultiPlus-II 12/3000/120-50 Victron MultiPlus-II 2x120V Victron inverter charger RV inverter systems Split-phase shore power 50A RV electrical systems #victron #multiplus #rvlife #offgridpower #solarpower #vanlife #InverterCharger #electricalengineering #shorts

victronmultipluspowerinverterbatteryhttpsoutputshorechargerphasesplitsystemsamznbackupcables

📝 Video Transcript

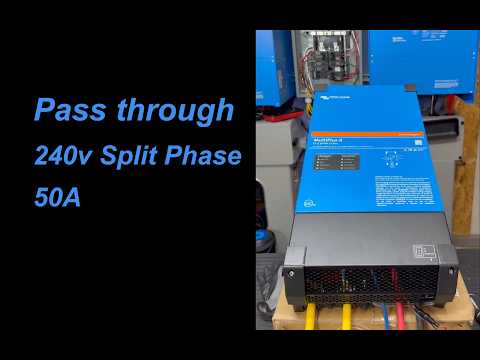

right here is a Victron Energy MultiPlus 2 12-Volt 3000 VA inverter and this is a standard MultiPlus inverter with some special abilities. First off, as you can see right here, it has two 120-Volt AC transfer switches built into this device. It can AC transfer capacity up to 50 amps and this is a 120-Volt inverter. Why is all of that important and how is that special, okay?

So, as you can see right here, it has a line one, line two, a neutral and a protective earth. It's got actually all of that on all three uh AC in, AC out one, AC out two. AC out one is the one that stays on when you're on battery power only, but if you were to take this to like a place and you plug into a 50-amp receptacle, 50-amp 240-Volt split phase, those lines would feed into here and it would pass through a split phase on AC out one and two. But, when you're on battery power only, it only outputs AC output one and in 120 volts.
